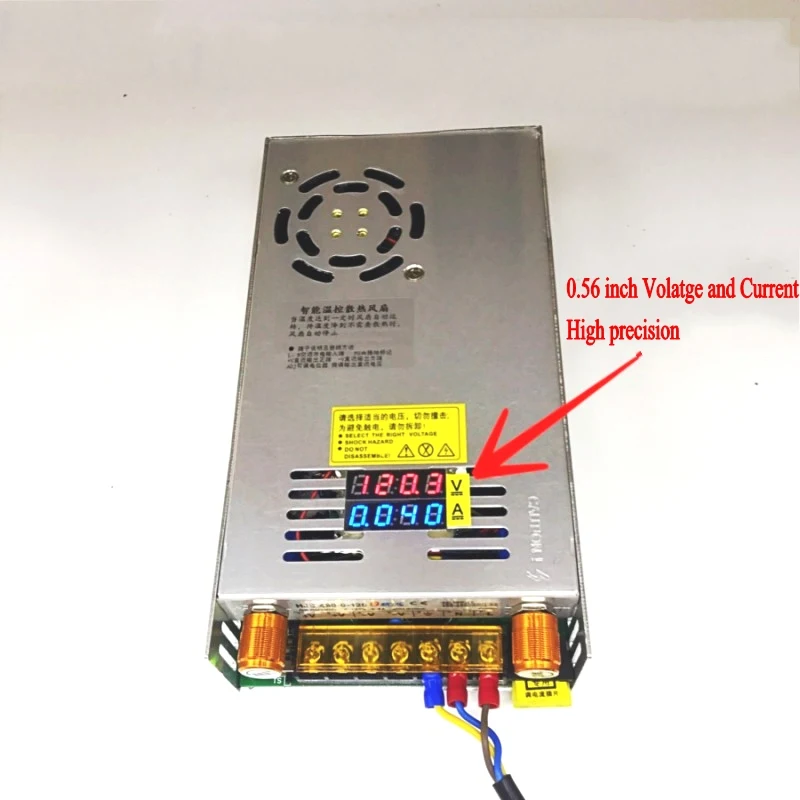

AC-DC Converter Digital display current Voltage adjustable Switch regulated power supply DC 12V 24v 36v 48v 60v 80v 120v 480W
Click to see details
AC-DC Converter Digital display current Voltage adjustable Switch regulated power supply DC 12V 24v 36v 48v 60v 80v 120v 480W-0
AC-DC Converter Digital display current Voltage adjustable Switch regulated power supply DC 12V 24v 36v 48v 60v 80v 120v 480W-1
AC-DC Converter Digital display current Voltage adjustable Switch regulated power supply DC 12V 24v 36v 48v 60v 80v 120v 480W-2
AC-DC Converter Digital display current Voltage adjustable Switch regulated power supply DC 12V 24v 36v 48v 60v 80v 120v 480W-3
AC-DC Converter Digital display current Voltage adjustable Switch regulated power supply DC 12V 24v 36v 48v 60v 80v 120v 480W-4
AC-DC Converter Digital display current Voltage adjustable Switch regulated power supply DC 12V 24v 36v 48v 60v 80v 120v 480W-5

AC-DC Converter Digital display current Voltage adjustable Switch regulated power supply DC 12V 24v 36v 48v 60v 80v 120v 480W

100% of buyers enjoyed this product!
Availability : In stock
DEAL OF THE DAY Ends in : 02:48:22
Price :  € 53,30 - € 58,98 / piece
Sale Price :  € 45,31 - 50,13 / piece

Hot Sellers from Good Idea Store Store for AC-DC Converter Digital display current Voltage adjustable Switch regulated power supply DC 12V 24v 36v 48v 60v 80v 120v 480W in Switching Power Supply only € 45,31 - 50,13

Free Return Free Return You will have 15 days from the 'on-time delivery date' to return the item for free and for any reason.
{0}-day Buyer Protection {0}-day Buyer Protection Get a refund if the item arrives late or not as described.

Share:

This new products from Good Idea Store is currently available for puchase. This products AC-DC Converter Digital display current Voltage adjustable Switch regulated power supply DC 12V 24v 36v 48v 60v 80v 120v 480W comes with discount for just AC-DC Converter Digital display current Voltage adjustable Switch regulated power supply DC 12V 24v 36v 48v 60v 80v 120v 480W. To get more details about this article, click on check discount.

AC-DC Converter Digital display current Voltage adjustable Switch regulated power supply DC 12V 24v 36v 48v 60v 80v 120v 480W has very good positive feedback from buyer. It was sold as 66 pieces, 30 buyer give positive feedback with 30 buyers give 5 star for this product.

Good Idea Store who sold AC-DC Converter Digital display current Voltage adjustable Switch regulated power supply DC 12V 24v 36v 48v 60v 80v 120v 480W is very trusted seller. They guarantee that the product is suitable according to described as they stated "You will have 15 days from the 'on-time delivery date' to return the item for free and for any reason. "

Below are some positiv feedback from customer after buying AC-DC Converter Digital display current Voltage adjustable Switch regulated power supply DC 12V 24v 36v 48v 60v 80v 120v 480W from Good Idea Store

Arrived about a month after purchased. AC-DC Converter Digital display current Voltage adjustable Switch regulated power supply DC 12V 24v 36v 48v 60v 80v 120v 480W look exactly as described and feels durable.
Great stuff AC-DC Converter Digital display current Voltage adjustable Switch regulated power supply DC 12V 24v 36v 48v 60v 80v 120v 480W same as described on page

RM1307731645734097

First, technical performance indicators

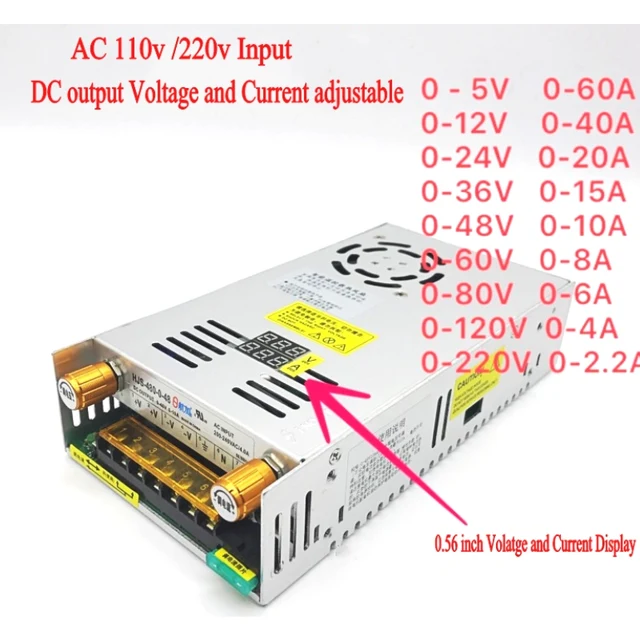

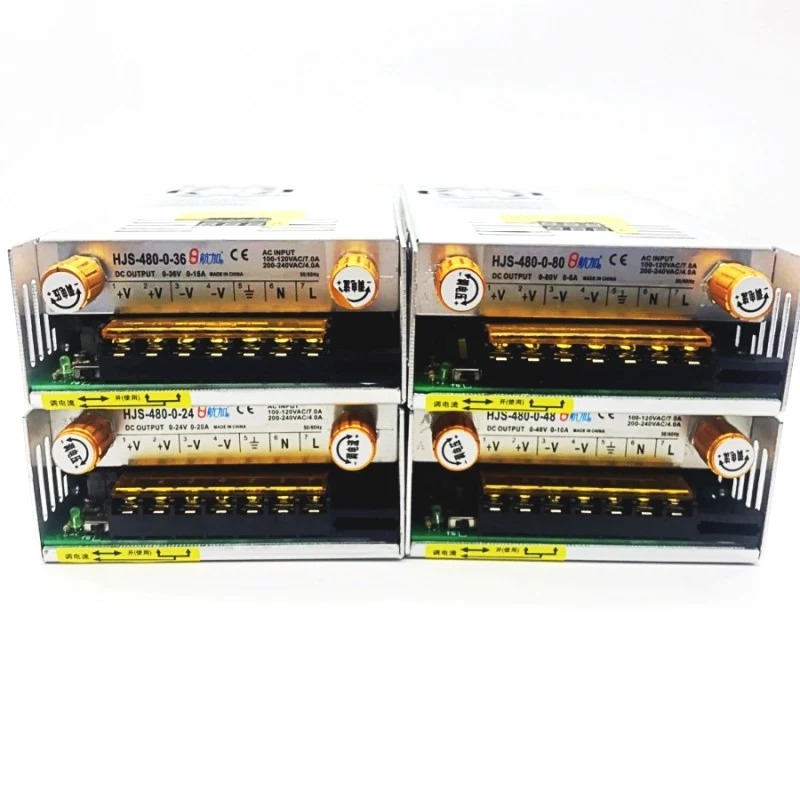

1. Output voltage range: 0- 5V continuously adjustable, output current: 60A, (adjustable to 8V) Digital display digits: 3 digits
      Output voltage range: 0-12V contin​uously adjustable, output current: 40A, (adjustable to 15V) Digital display digits: 3 digits
      Output voltage range: 0-24V continuously adjustable, output current: 20A, (adjustable to 27V) Digital display digits: 3 digits
      Output voltage range: 0-36V continuously adjustable, output current: 15A, (adjustable to 38V) Digital display digits: 3 digits
      Output voltage range: 0-48V continuously adjustable, output current: 10A, (adjustable to 50V) Digital display digits: 3 digits
      Output voltage range: 0-60V continuously adjustable, output current: 8A, (adjustable to 62V) Digital display digits: 3 digits
      Output voltage range: 0-80V continuously adjustable, output current: 6A, (adjustable to 82V) Digital display digits: 3 digits
      Output voltage range: 0-120V continuously adjustable, output current: 4A, (adjustable to 122V) Digital display digits: 4 digits
      Output voltage range: 0-220V continuously adjustable, output current: 2.2A, (adjustable to 222V) digital display digits: 4 digits

2. Current limiting output current range: (0-40A) (0-20A) (0-15A) (0-10A) (0-8A) (0-6A) (0-4A) (0-2.2A) continuous Adjustable
3, ripple voltage; no more than 100mV
4, the equivalent internal resistance of the regulator: not more than 0.O5Ω
5, voltage adjustment rate:
6, with short circuit current limit protection, automatic recovery function

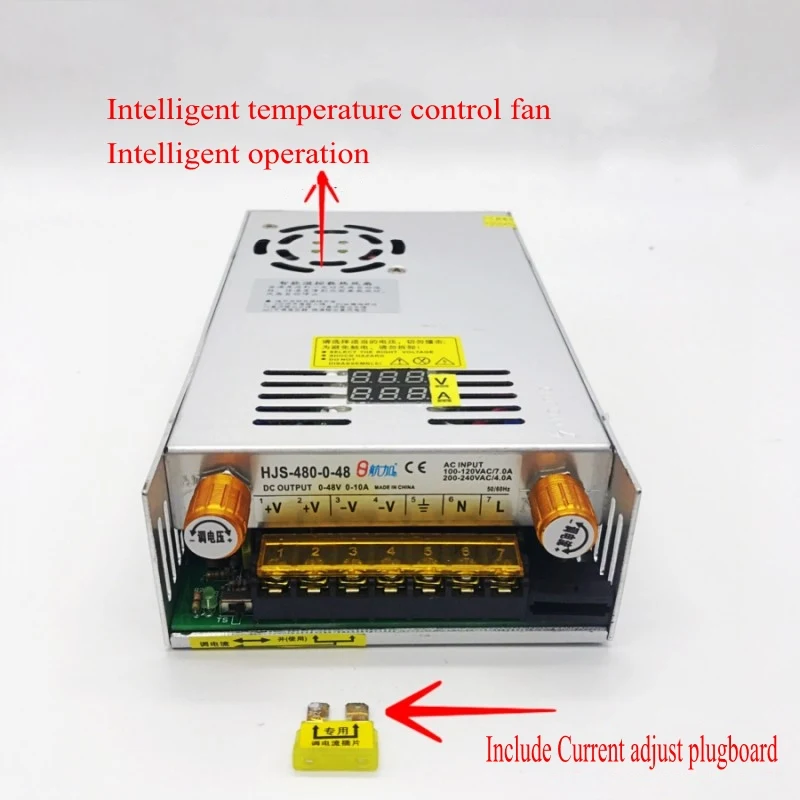

Low price and high reliability

105Celsius degree output capacitor

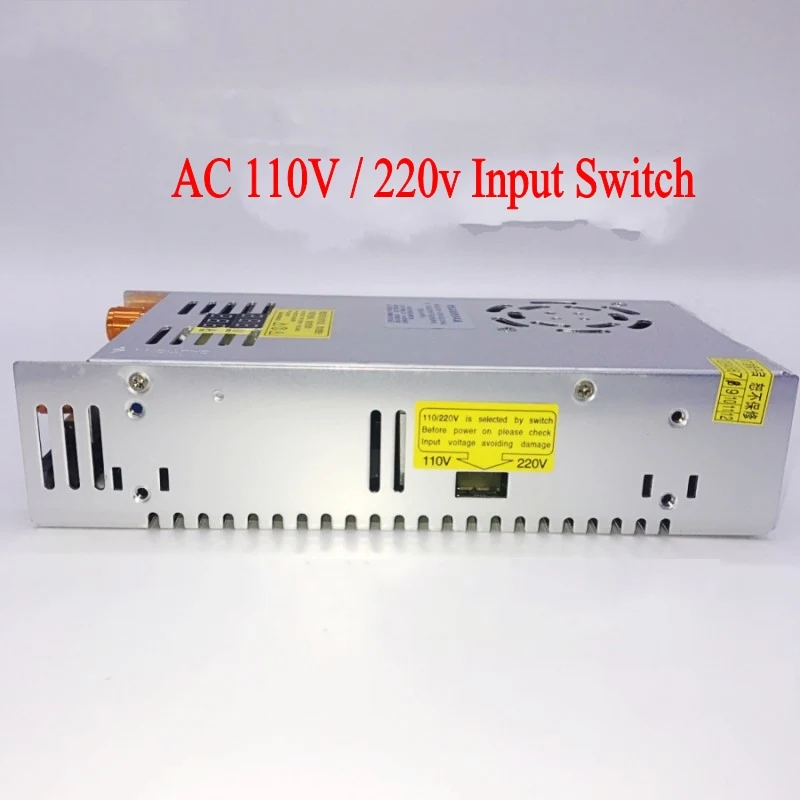

Universal AC input 110/220VAC slected by switch

High efficiency and low operation temperature

Soft-start current can reduce the AC input impact effectively

With short-circuit and overload protection

Compact size,light weight

100% full-load burn-in test

Install with EMI filter,minimum wave


Operational use

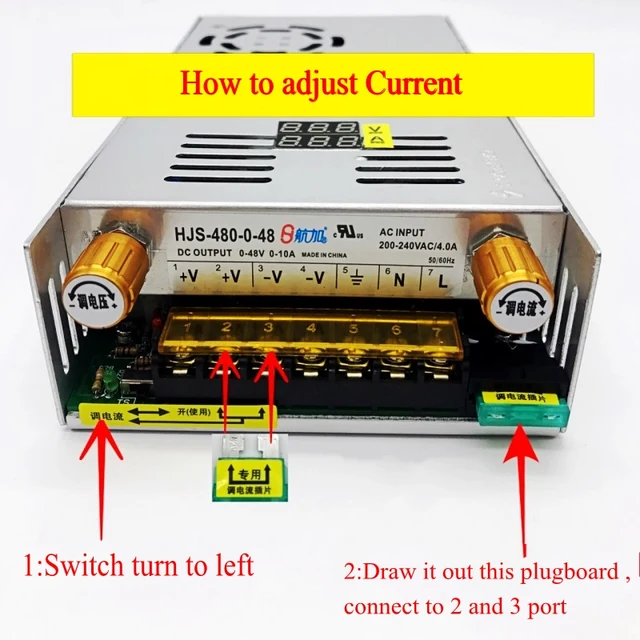

(How to limit current) to adjust current?
1. Operate in the case of power failure, pull the small pull switch in the lower left corner to the current regulating gear
2. Pull out (dedicated current regulating insert) to the 2nd and 3rd ports of the wiring port, loosen the port screw with a screwdriver, and tighten with a screwdriver (at this time, connect to the listed power), and then connect The voltage of the meter shows 0.00V, and the current shows the current current parameter. At this time, the power supply will emit a small current.

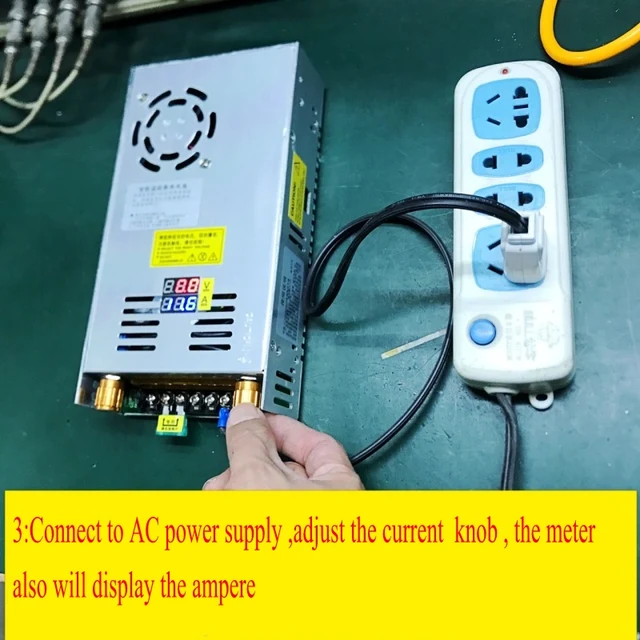

3. On the right side (adjust current knob), you can adjust the desired current limit parameter, and display the current parameter synchronously with the digital display. 0-21A/0-16A/0-11A/0-6.5A can be adjusted in the whole process.

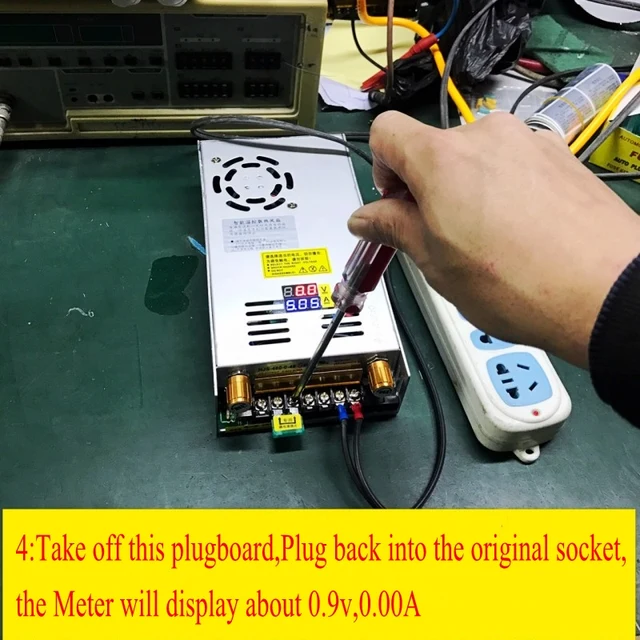

4. Remove the (special adjustment current plug) and insert it back into the original insert card holder. After removing the digital display, the voltage is about 0.90V, and the current is 0.00A.
5. Pull the pull switch in the lower left corner to the right to open the "open (use)" position.
6. The current power supply is in the parameter value of the current limit. The power supply is adjusted to a few V (the digital display shows the output voltage in real time), the current does not change, and the current reaches the current limit of 95% of the current limiting parameter. Overload protection
7. The current parameter displayed by the digital display at this time is the current value of the device load, and the load current is monitored in real time.

When the load device is connected, the current value can be adjusted directly in real time. The maximum current value is the maximum current value of the load device. If the current adjustment knob clockwise exceeds the maximum current value of the device, the digital current value will not last. Real-time synchronized digital display, showing only the maximum current value of the device.


If there is no need for current limiting, use the general equipment, without the above operation, pull the pull switch in the lower left corner to the "open (use)" position, and turn the (current adjustment knob) clockwise to the top. The maximum current limit at this time is 21A/16A/11A/6.5A/4A, at this time the power supply parameter is the output 0-24V21A/0-16A/0-48V11A/0-36V15A/0-80V6.5A/0-120V4A, which is equal to a 0-24V20A /0-36V15A/0-48V10A/0-80V6A/0-120V4A switching power supply

Uses: Mainly used for various battery charging, DC equipment, DC motor stepless speed regulation, LED stepless dimming, chemical electroplating speed regulation, scientific research test, student experiment, etc., and a wide range of uses.
Special attention: If using inductive load such as motor or fan, please pay attention to the maximum starting current parameter of the motor. This parameter must not be higher than the maximum operating current of the power supply. Otherwise, the power supply may be damaged. You should select a higher current power supply or soften the motor. The protection circuit is activated to absorb the inrush current.
Power formula) voltage X current = power

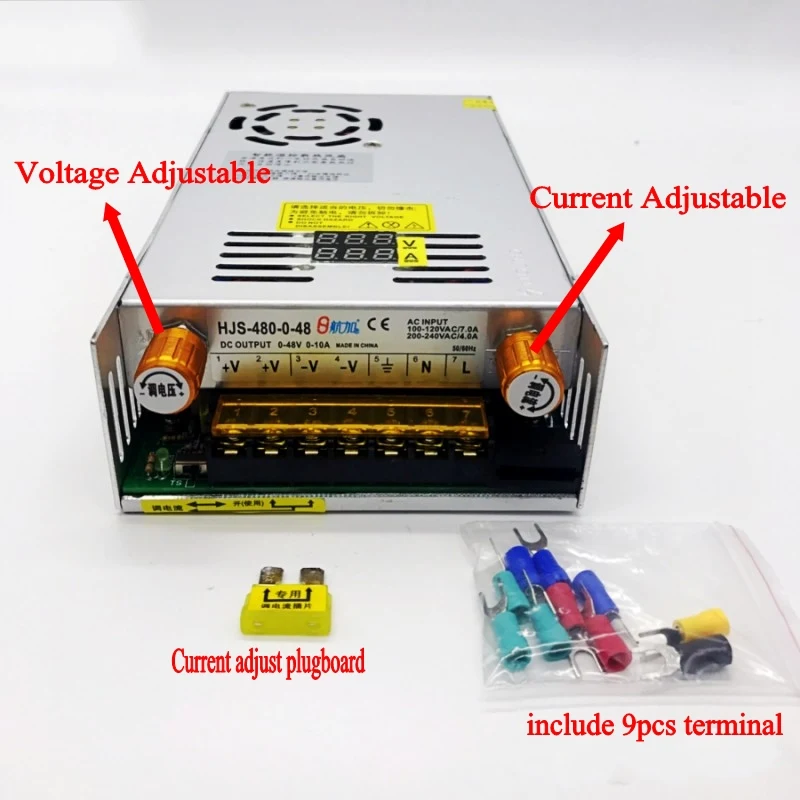

Terminal description and wiring method

L, N AC input terminal FG ground mark V+ DC output positive terminal
V-DC output negative terminal ADJ adjustable potentiometer Fine-tuning output DC voltage
● full voltage input
● Miniaturization
●Protection function Short circuit / overload / over voltage
●100% full load aging test
Input Voltage & Frequency Range----------110V/220VAC/47~63Hz
Start surge current [email protected] (cold start)
Output adjustment range --------------- ±100% (rated output voltage)
Overload protection -------------------105%~200% (rated load), self-recovery
Overvoltage protection -------------------115%~135% (rated output voltage)
Short circuit protection ------------------- self-recovery
Output start time ---------------≤[email protected][email protected]
Output hold time ---------------≥[email protected], ≥[email protected]
Insulation strength ------------------- Input - Output: AC1500V, 1min
                            Input - housing: AC1500V, 1min
                            Output - Case: DC500V, 1min
Working environment ------------------ -10 ° C ~ 50 ° C; 20% ~ 90% RH (no condensation)

Precautions:
   ◆When the charger is used, please unplug the battery and turn off the input power. If it is not used for a long time, please store it in a ventilated and dry environment.
   ◆To ensure safety, please perform within the line of sight when charging. If you need to leave, remove the battery to avoid unpredictable danger.
   ◆Do not mix batteries of different types, different capacities and different manufacturers.
   ◆ Keep away from flammable materials when charging, pay special attention to battery temperature. If the temperature is very high, such as hot, please disconnect the power immediately to stop charging.
   ◆ Do not drop wires or other conductive objects into the charger. The consequences are self-sufficient.
  z Do not charge if the battery leaks, rises drum, peels off, changes color, or deforms.
   ◆ Do not try to charge a non-rechargeable battery.
   ◆ Do not exceed the charging range specified by the battery manufacturer.


   ◆ Do not modify or disassemble the charger. Turning on the machine and indicating that you have waived all warranty and technical


420_conew1 421_conew1 422_conew1 423_conew1 424_conew1 425_conew1 426_conew1
427_conew1 428_conew1 429_conew1

Currently, there was no feedback for AC-DC Converter Digital display current Voltage adjustable Switch regulated power supply DC 12V 24v 36v 48v 60v 80v 120v 480W

Name Value
Brand Name TKXEC
Output Current 0-50A
is_customized Yes
Output Type Single
