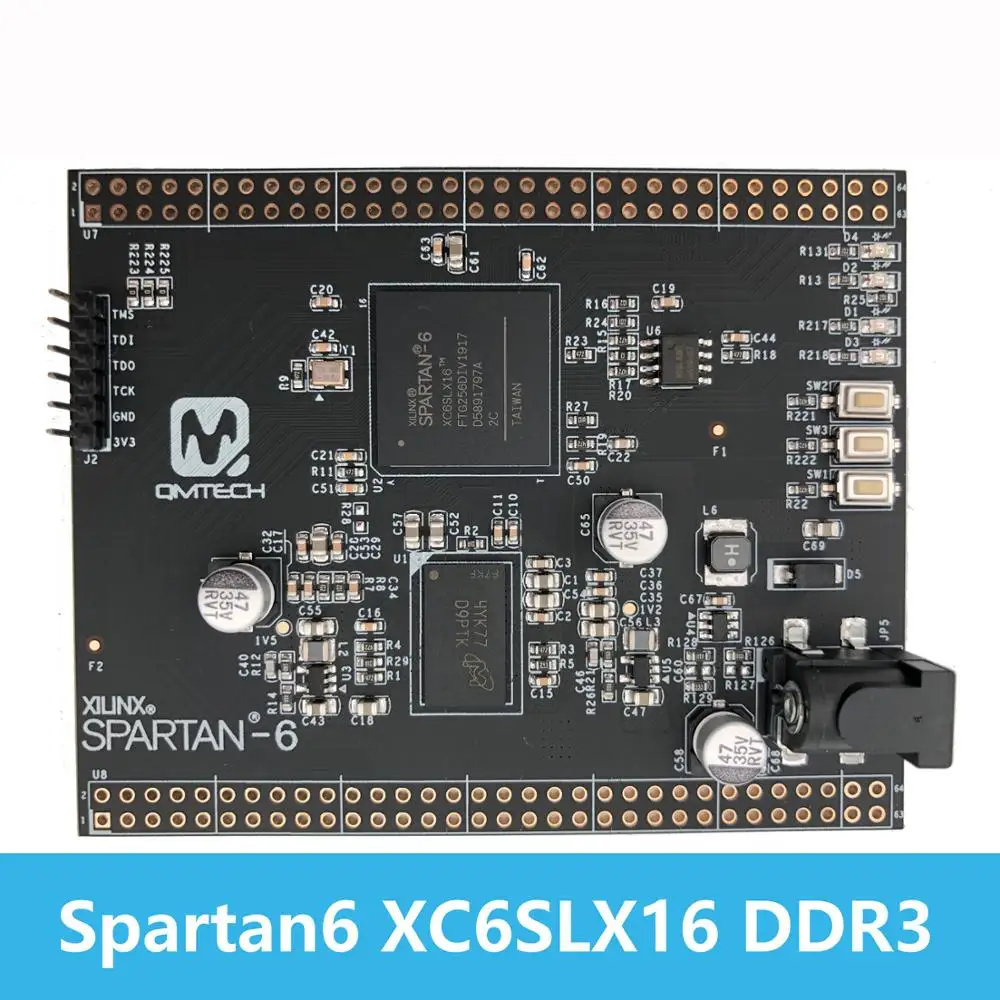

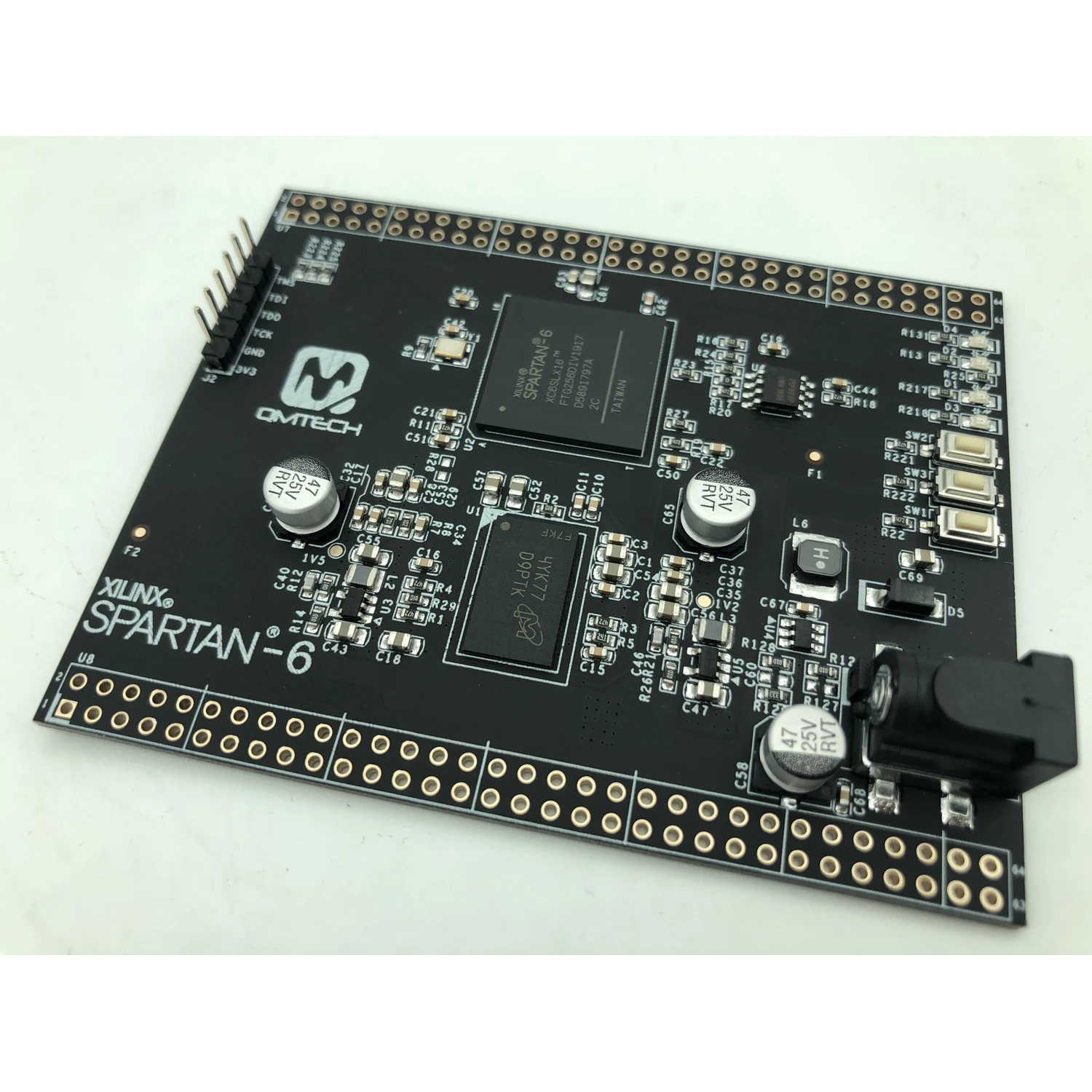

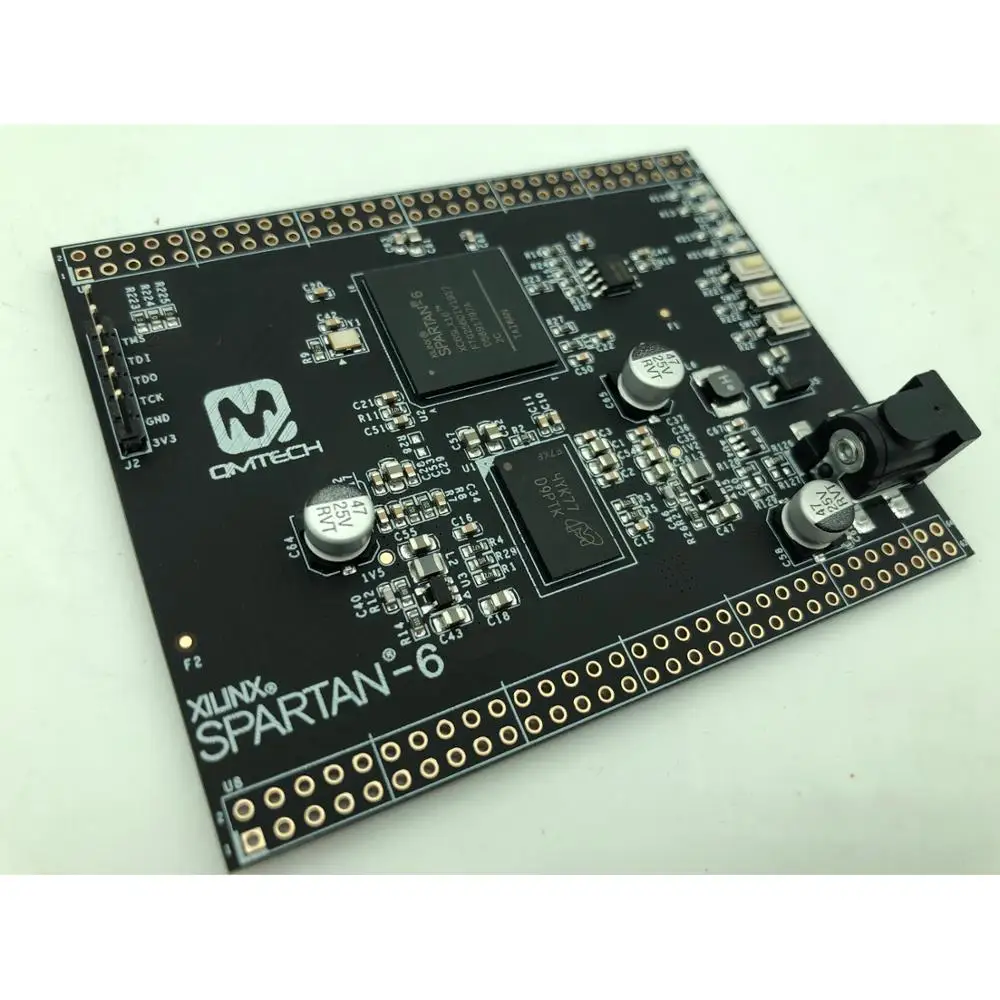

Description of XILINX Spartan-6 Spartan6 FPGA Development Board:

Hardware characteristic parameters:

1. Master FPGA: XC6SLX16-2FTG256C;
2. Main control FPGA external clock source frequency: 50MHz;
3. XC6SLX16-FTG256 chip comes with abundant Block RAM resources;
4. The number of logic units of XC6SLX16-FTG256 chip is 14,579;
5. QMXC6SLX16 onboard M25P80 SPI Flash chip storage capacity of 1MB bytes;
6. QMXC6SLX16 onboard 256MB Magnesium DDR3 memory, model MT41J128M16HA-15E, can run stably at 400MHz;
7. QMXC6SLX16 provides 3.3 power for core board chip work, using MPS company's MP2359 wide range input DC / DC;
8. QMXC6SLX16 leads to two rows of 64p, 2.54mm pitch row seats, which can be used for external 24Bit TFT LCD screen, CY7C68013 USB module, high-speed ADC acquisition module or CMOS camera module, etc .;
9. QMXC6SLX16 leads to the 3-way button of the chip for testing;
10. QMXC6SLX16 leads the chip's 4 LED lights for testing;
11. QMXC6SLX16 leads to the JTAG debugging end of the chip, using a single row of 6p, 2.54mm pitch headers;
12. The actual size of the QMXC6SLX16 development board is 6.7cmx8.4cm. The default input power of the board is recommended to be 1A5V DC.
13. The QMXC6SLX16 development board provides 108 zeros, all of which are processed in equal length. The I0 voltage of BANK1 can be adjusted by a 0 ohm resistor to adapt to other external 10 levels, such as 1.8LVDS high-speed ADC signal, 2.5V Gigabit Ethernet PHY, etc.




Size:

1

2



3

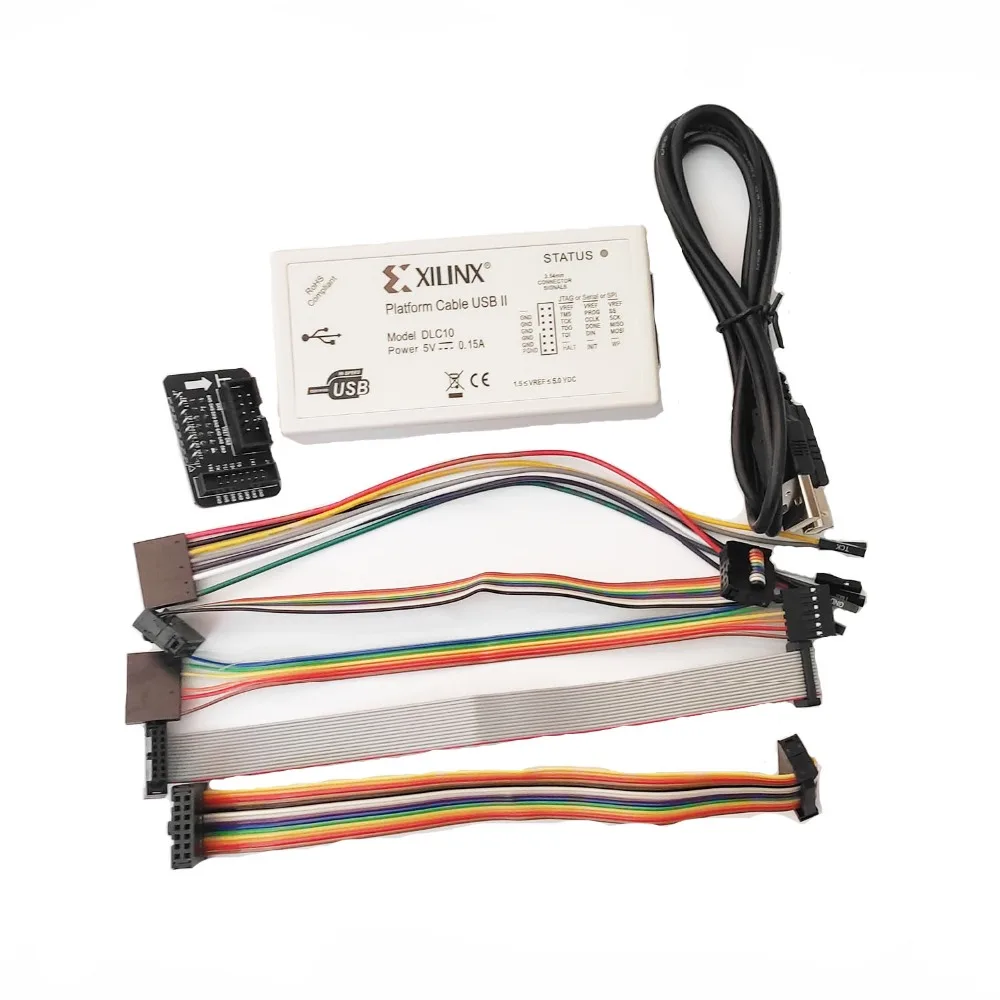

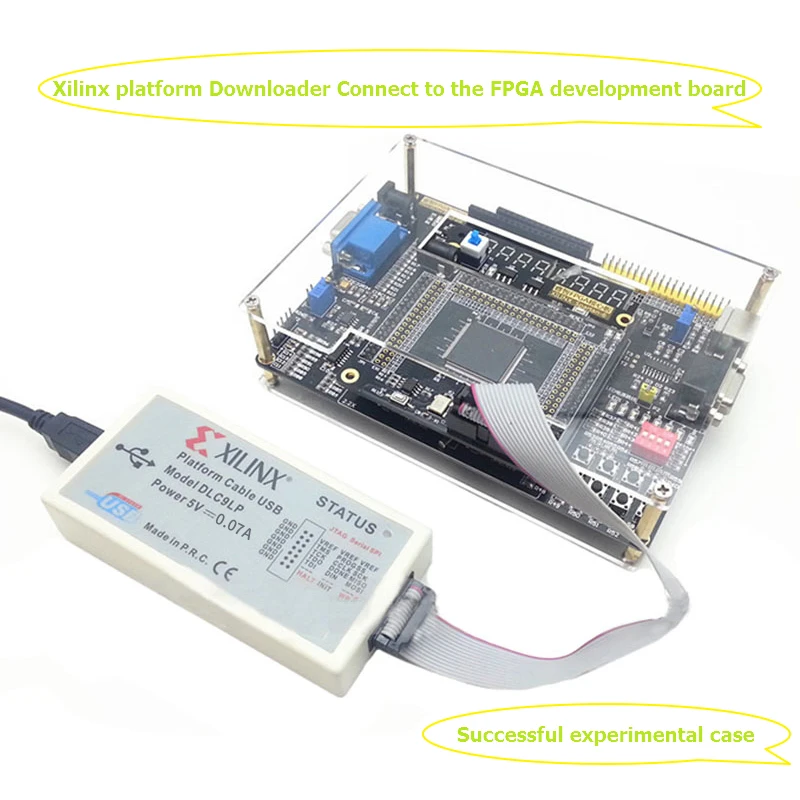

Description of DLC10 Xilinx Download Platform Cable USB:
  • Chip:CY7C68013A

  • Only this compatible solution supports firmware upgrades perfectly.

  • Fully supports all CPLD/FPGA devices on the Xilinx.

  • Support JTAG, Slave, Serial, SPI download mode.

  • The target device voltage is compatible with the 1.2V-5V, automatically discriminating and adapting to the target board I/O voltage.

  • Support for IMPACT and ChipScope.

  • Target device Downloader, clock selectable, up to 24Mhz.

  • Support multiple operating systems: XP, Vista, 2000, WIN7, WIN8, RedHat, Enterprise, Linux, Linux Enterprise.

  • JTAG has a signal isolation processing, perfect protection of your equipment, safe use




Description of Xilinx FPGA Spartan-6 XC6SLX9 Development Board:
Parameter:
  • Brand: XILINX FPGA development board

  • Feature core board + peripheral board, 2 PCB board combination

  • Main chip Spartan6 series XC6SLX9-TQG144

  • Configuration chip:M25P16

  • Clock high precision 50MHz active crystal oscillator

  • AD conversion chip 8 bit serial TLC549

  • DA conversion chip, 4 channel, 8 bit TLC5620

  • Workmanship: Black welding, heavy metal welding, machine welding


Core board resources:

1,FPGA main chip: Spartan6 series XC6SLX9-TQG144

2,FPGA configuration chip: M25P16

3,clock: high precision 50MHz active crystal oscillator

4,debug interface: JTAG (standard 2*7 14 pin Xilinx download port)

5,power supply: 5V, 3.3, 1.2V, AS1117 dedicated power chip

6,LED:2 red indicating LED (power indicator one, load complete indicator light one)

7,LED:2 users can define LED lights, which can be used for power on test, water lamp, other function test, etc.

8,button: a reset button, a reset (independent) button

9,I/O resource interface: the main chip resources IO all lead out, and on the board marked clear pin number, 2.54mm standard interface, It can be used in conjunction with the intelligent universal expansion backplane to complete more peripheral experiments;

10,reserved three rows of extended PCB hole leads each IO interval of 2.54 to the welding pin, row seat, or test for the test point, very convenient

11,self lock button power switch

12,all power input and output are added expensive tantalum capacitor, all the main chip 3.3V, 1.2V are added 104 capacitors, to ensure power supply stability


Peripheral resources (peripheral interface board):

1,DC5V interface and red LED power indicator

2,board 8 independent buttons, can do button control, digital logic, basic experiments, etc.

3,onboard 8 bit LED LED can be used for LED control, digital logic, basic experiments, etc.

4,onboard 8 digital tube, frequency meter, stopwatch

5,onboard 4 bit dial switch, switch control and other experiments can be done

6,with LCD1602 LCD interface, do character display experiment (excluding LCD)

7,with LCD12864 LCD interface, to do Chinese characters, characters and other display experiments (not including LCD)

8,board 1 buzzer, can do sound and music experiment

9,PS2 interface, can do PS/2 keyboard experiment

10,with a temperature sensor interface (standard with no temperature transfer components), you can do thermometer          experiment

11,TLC549 AD converter, you can do voltmeter and other experiments (many development board does not bring)

12,TLC5620 DA converter can do DA output control experiment, the actual role is very large (many development board does not bring)

13,RS232 serial port can do serial communication experiment

14,256 color VGA interface, can do monitors, experiments and so on

15,32.768KHz reference crystal oscillator

16,TL431 can be used as the 2.5V voltage reference source

17,adjustable potentiometer, adjust the DA value

18,I2C serial EEPROMAT24C08, do IIC bus experiment

19,PCF8563T real time clock

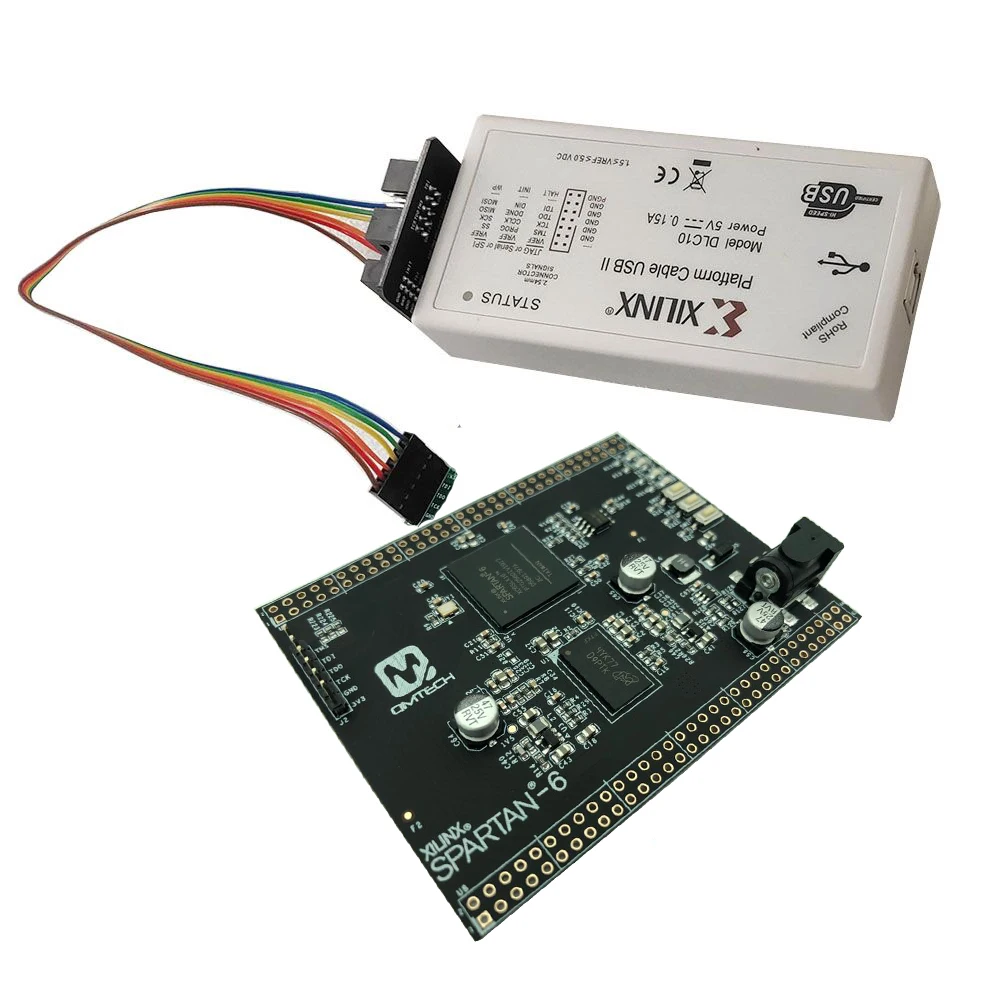

Shipping list of bundle1:
  • 1 * XILINX Spartan-6 Spartan6 FPGA development board

  • 1 * USB cable

  • 1 * Xilinx Platform Cable USB

  • Schematic and program code

  •

Shipping list of bundle2:
  • 1 * XILINX Spartan-6 Spartan6 FPGA development boar

  • Schematic and program code

  •

  • Shipping list of bundle3:
    • 1*    Xilinx  FPGA/CPLD platform cable USB download

      1*  Adapter plate

      1*  2*7pin 2.54 spacing JTGA line

      1*  2*5pin 2.54 spacing JTGA line

      1*  2*7pin 2 spacing JTGA line

      1*  8pin turn 6pin fly line (Dupont Line)

      1*  8pin (Dupont Line)

      1*  USB data line

    • Schematic and program codeHb8b576d3ec274515a5ddb9339a24fa50f

    • Shipping list of bundle4:
    • 1* Xilinx FPGA Spartan-6 XC6SLX9

      1*  Peripheral expansion board

      1* HL340 serial port cable

      1* Xilinx   FPGA/CPLD  platform cable USB d ownload

      1*  Adapter plate

      1*  2*7pin 2.54 spacing JTGA line

      1*  2*5pin 2.54 spacing JTGA line

      1*  2*7pin 2 spacing JTGA line

      1*  8pin turn 6pin fly line (Dupont Line)

      1*  8pin (Dupont Line)

      1*  USB data line

    •

    • XL003+XL005-2












Currently, there was no feedback for XILINX Spartan-6 Spartan6 FPGA Development Board 32MB SDRAM Micron MT48LC16M16A2 XC6SLX16 Core Board with DLC10 Xilinx Download

Name Value
Brand Name ReYeBu
Condition New
Type Voltage Regulator
Model Number XILINX FPGA Spartan-6/DLC10

Similar Product with Starter Kit for Arduino Uno R3 - Uno R3 Breadboard and holder Step Motor / Servo /1602 LCD / jumper Wire/ UNO R3


100% New SR2WC BGA Chipset

100% New SR2WC BGA Chipset

USD 24.98 / USD 22.48
DC-DC Voltage stabilized power supply module Adjustable boost& buck voltage regulator module LM2596S-ADJ MT3608 MP1584EN

DC-DC Voltage stabilized power supply module Adjustable boost& buck voltage regulator module LM2596S-ADJ MT3608 MP1584EN

USD 0.30 / USD 0.27
10PCS L7812CV L7812 TO220 7812 LM7812 MC7812 TO-220 new and original IC Chipset

10PCS L7812CV L7812 TO220 7812 LM7812 MC7812 TO-220 new and original IC Chipset

USD 0.78 / USD 0.70
100% test very good product SR2Z5 N4200 bga chip reball with balls IC chips

100% test very good product SR2Z5 N4200 bga chip reball with balls IC chips

USD 24.69 / USD 22.22
10PCS GT30F131 TO-263 30F131 TO263

10PCS GT30F131 TO-263 30F131 TO263

USD 2.18
Short Distance Scan Sensor Sweep Hand Sensor Switch Module 36W 3A Constant Voltage for Auto Smart Home Compatible XK-GK-4010A

Short Distance Scan Sensor Sweep Hand Sensor Switch Module 36W 3A Constant Voltage for Auto Smart Home Compatible XK-GK-4010A

USD 1.32 / USD 1.10
1PCS Promotion For arduino Nano 3.0 Atmega328 Controller Compatible Board WAVGAT Module PCB Development Board without USB V3.0

1PCS Promotion For arduino Nano 3.0 Atmega328 Controller Compatible Board WAVGAT Module PCB Development Board without USB V3.0

USD 2.39 / USD 1.98
(1-10piece) 100% New MN864729 for PS4 CUH-1200 HDMI ic QFN-88 Chipset

(1-10piece) 100% New MN864729 for PS4 CUH-1200 HDMI ic QFN-88 Chipset

USD 9.98 / USD 8.78
( 25k ) 0.2mm /0.3mm/0.35mm/0.4mm/0.45mm/0.5mm/0.55/0.6mm/0.65mm/0.76mm Leaded Soldering Balls BGA Solder Balls

( 25k ) 0.2mm /0.3mm/0.35mm/0.4mm/0.45mm/0.5mm/0.55/0.6mm/0.65mm/0.76mm Leaded Soldering Balls BGA Solder Balls

USD 3.98 / USD 3.50
10PCS L7805CV TO220 L7805 TO-220 7805 LM7805 MC7805 new and  original IC

10PCS L7805CV TO220 L7805 TO-220 7805 LM7805 MC7805 new and original IC

USD 0.80
1pcs/lot LM101AJ/883 LM101AJ LM101 CDIP-8

1pcs/lot LM101AJ/883 LM101AJ LM101 CDIP-8

USD 0.88 / USD 0.81
Original 5A DC to DC CC CV Lithium Battery Step down Charging Board Led Power Converter Lithium Charger Step Down Module XL4015

Original 5A DC to DC CC CV Lithium Battery Step down Charging Board Led Power Converter Lithium Charger Step Down Module XL4015

USD 1.35 / USD 1.17
NEWEST RFID Starter Kit for Arduino UNO R3 Upgraded version Learning Suite With Retail Box

NEWEST RFID Starter Kit for Arduino UNO R3 Upgraded version Learning Suite With Retail Box

USD 22.50 / USD 20.03

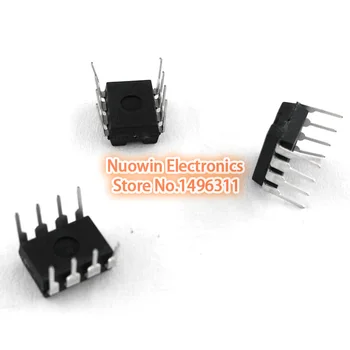

10PCS/LOT New NE555 NE555P NE555N 555 Timers DIP-8
